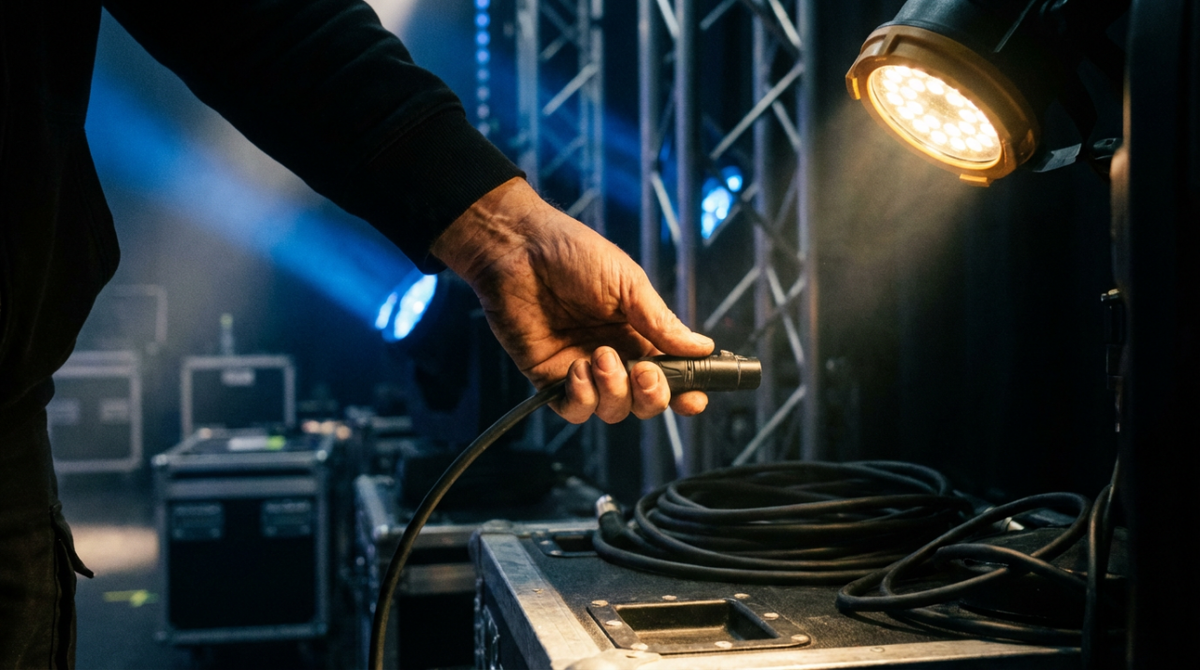

Why You Can't Use Microphone Cables for DMX Lighting

DMX lighting data needs the right cable and termination to avoid flicker and missed cues. This guide explains the electrical mismatch and the fixes that keep rigs stable.

Microphone cables fit the same connectors, but their electrical behavior is wrong for lighting data, so they invite flicker, missed cues, and unstable control.

Lights twitching right as the drop hits, even though everything looked fine at soundcheck? The fastest, repeatable fix in real show builds is swapping to the right data cable and finishing the line cleanly, and the glitches stop. You'll get the why, the warning signs, and the exact wiring moves that keep the vibe locked.

DMX is fast digital control, not audio

DMX512 is an asynchronous serial protocol based on EIA-485 differential signaling that sends digital lighting-control data over twisted-pair cable. Each packet relies on clean timing and clean edges, which is why lighting data behaves nothing like an audio signal even though the connectors look identical.

A single 512-channel universe refreshes about 44 times per second, which keeps fades smooth across multiple fixtures. If an LED wash needs four channels and starts at address 1, it owns 1-4; the next four-channel fixture starts at 5, so a six-fixture wash line lands at 1, 5, 9, 13, 17, and 21 without overlap.

The electrical mismatch that makes mic cables risky

DMX runs around 250,000 bits per second with square-wave edges, while microphone lines are built for analog audio bandwidth, so the cable physics are different. Proper DMX cable targets about 110-120 ohms of impedance, and when a mic cable drifts from that target, reflections smear the data and the rig starts acting unpredictable. On load-ins, that is the moment a clean chase turns into random strobe, and swapping to true DMX brings it back.

Proper DMX wiring assumes a dedicated RS-485 data cable with specific conductors for DMX+ and DMX-, not a generic audio cord. The differences are not cosmetic; they are baked into the physics of signal integrity.

A terminator at the end of a DMX daisy chain is required to stop reflections that show up as flicker or delayed response. If a line of LED pars looks stable at half intensity but jitters during fast color chases, the missing terminator is often the culprit, and snapping one onto the last fixture usually locks it down.

Connector confusion and show-day traps

DMX can appear on both 3-pin and 5-pin XLR shells, and polarity or adapter mistakes are a common source of last-minute panic. A console with 5-pin output feeding 3-pin fixtures needs a consistent adapter plan so any tech can patch the line in the dark and it just works, and standardizing avoids the quick-fix reverser cable shuffle.

Mic cable can appear to work on very short runs or tiny rigs, but reliability falls off as distance and fixture count grow. The upside is immediate convenience because the connectors fit; the downside is random strobing or fixtures ignoring cues once the line gets longer, which is the opposite of a high-stakes show.

Practical playbook for reliable, hype-ready DMX

Each universe tops out at 512 channels, so larger rigs need multiple universes on separate data lines and a clean addressing plan. A moving head that uses 16 channels means a dozen heads consumes 192 channels, leaving room for LED washes on the same universe if you map addresses before you hang.

Data cables are less forgiving around interference, so careful routing away from motors and fluorescent power runs and crossing at 90 degrees when paths must intersect keeps the line stable. On a ballroom truss, a short right-angle cross beats a long parallel run hugging a dimmer pack.

High-quality, industry-standard cables and disciplined cable management prevent damage, speed troubleshooting, and keep the system stable under pressure. When the room flips from cocktail to dance, labeled universe runs keep the strike crew from pulling the wrong line and killing the mood.

Basic continuity checks with a multimeter before power-up catch stray shield strands that can corrupt the bus. On a fresh install, a five-minute resistance check at the splitter can save an hour of chasing ghost flicker later.

Keep the lighting network on its own lane, feed it true DMX cable, and terminate it like it matters, because it does. Do that and your scenes hit hard, your chases stay clean, and the party aesthetic stays bulletproof.
