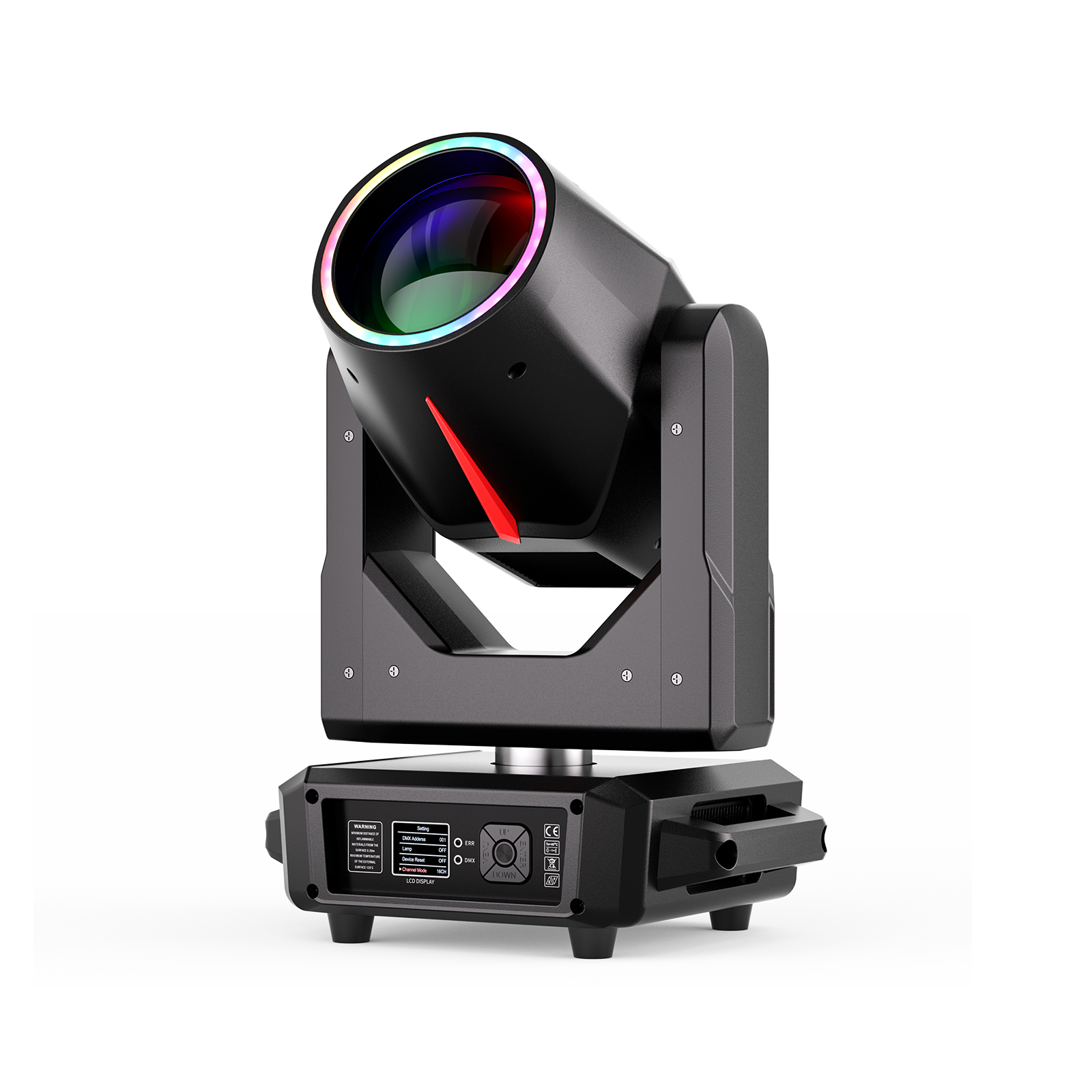

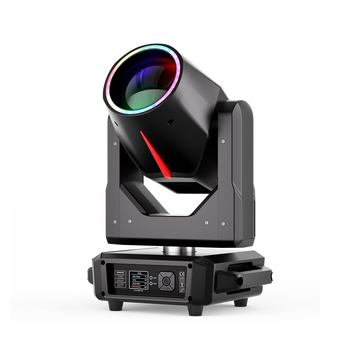

UKING ZQ02823 BEAM

Specification:

Model：ZQ02823

Material：Sheet Metal Structure/Nylon Shell

Input voltage: AC100V-240V 50/60Hz

Rated power: 380W

Light source: 295W HID + 31  0.5W (RGB) LEDs

Optical aperture: 130mm

Light output angle: 4°

Color temperature: 10000K

CRI index: Ra≥80

Optimal projection distance: 3-10M

Illuminance: 630000Lux@5M

Average life of HID: 2000h

Flash: 1-20Hz

Color disk: 14+1 color disk, forward and reverse water flow

Fixed pattern disk: 13+1 pattern disk, forward and reverse water flow

Colorful atomization: Rainbow + Atomization

Prism: 8/18-prism, 0-360°rotatable

Focus: Electronic focus

X-axis: 540° Fine-tuning accuracy: 1.2°

Y-axis: 270° Fine-tuning accuracy: 1.2°

Operation mode: Automatic, Sound Control, Master-Slave, DMX

Control channel: 16/22CH

Protocol: Standard DMX512 protocol, RDM protocol

Data connection: Three-core XLR input/output

Display: LCD display

Package includes:

1. Moving Head Light *1

2. Power Cord *1

3. Signal Cable *1

4. Light Hook Bracket *2

5. Manual *1
