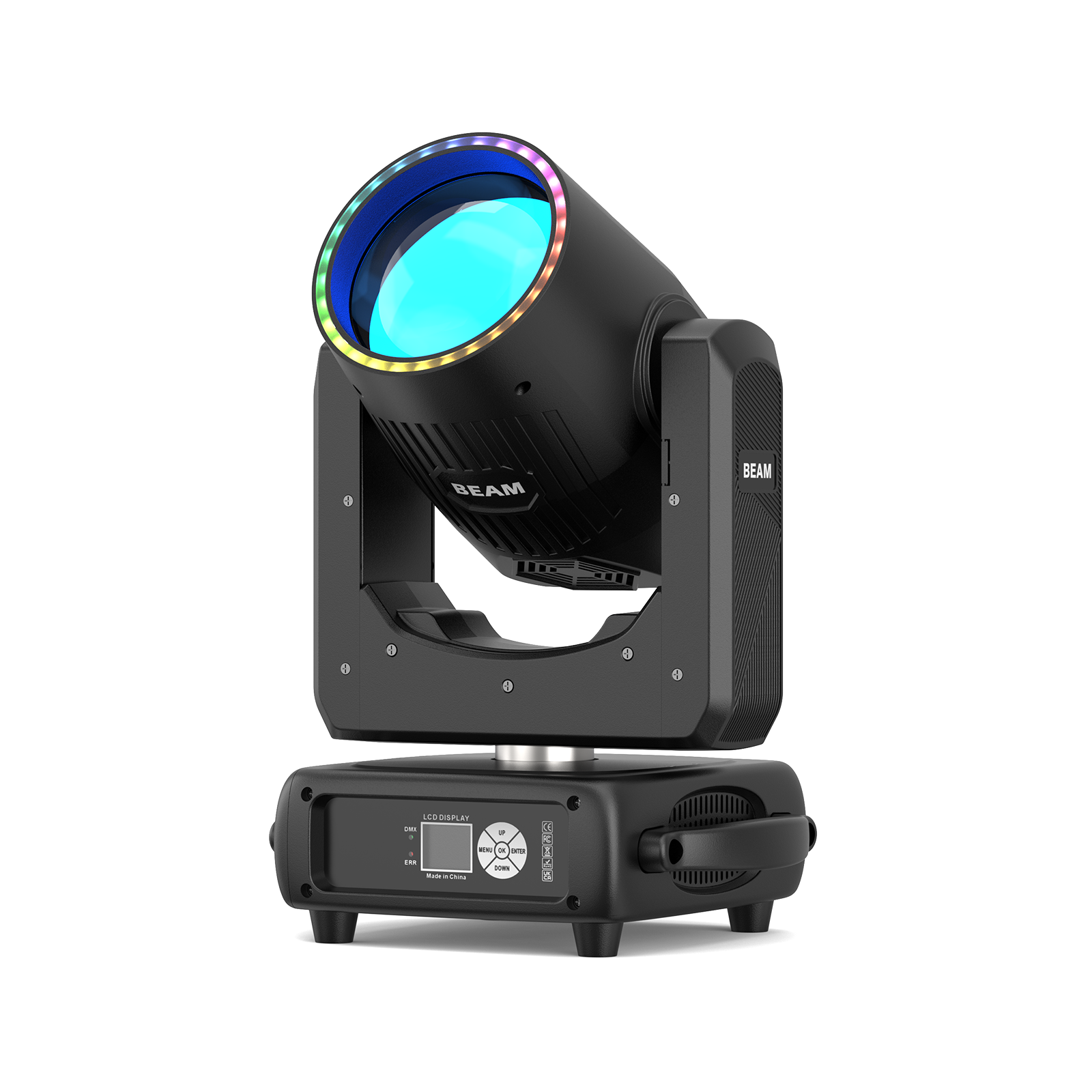

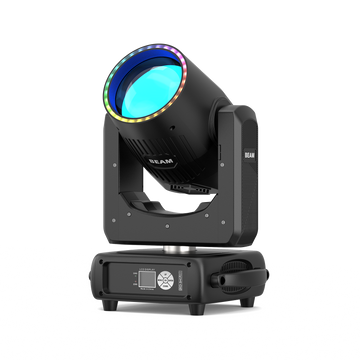

UKING ZQ02821 BEAM
Guarantee safe & secure checkout
UKING ZQ02821 BEAM
Find out more.
Specifications:
Model: ZQ02821
Material:Sheet Metal Structure + Nylon Plastic Shell
Input voltage: AC110V-240V 50/60Hz
Rated power: 295W
Light source: 1 PCS 250W HID+29 0.5W (RGB) LEDs
Light output angle: 2.3°
Light output diameter: 145 mm
Color temperature: 8000K-9000K
CRI index: Ra≥90
Luminous flux of the whole lamp: 12000lm
Optimal projection distance: 5-30M
Illuminance: 162000Lux@10 meters
Average life of the bulb: 2000h
Dimming curve: 0-100% mechanical dimming
Mechanical strobe: 1-13Hz
Color disk: 13+1 color disk; forward and reverse water flow with half color
Fixed pattern disk: 14+1 pattern disk; forward and reverse water flow
Effect disk: 8 prisms + 24 prisms + rainbow effect + atomization effect
Prism: Independent 48 honeycomb prism, rotating in the positive direction, can be used in combination with the effect disk
Focus: Electronic linear focus, from near to far
X axis: 540° Fine-tuning accuracy: 2°
Y axis: 270° Fine-tuning accuracy: 1°
Operation mode: Self-Propelled, Voice Control, Master-Slave, National Standard DMX512
Control channel: 18CH/22CH
Protocol: Standard DMX512 protocol, RDM protocol
Data connection: Three-core XLR input/output
Display: LCD display
Protection level: IP20
Working environment: -10℃-45℃
Package includes:
Power cord*1
Signal cable*1
Quick lock light hook bracket*2
Instruction manual*1
UKING ZQ02821 BEAM USER MANUAL
