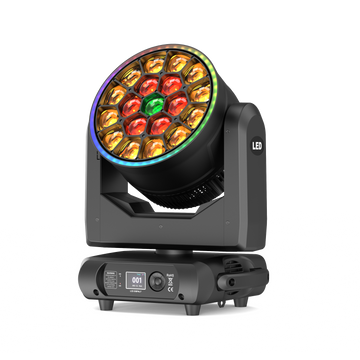

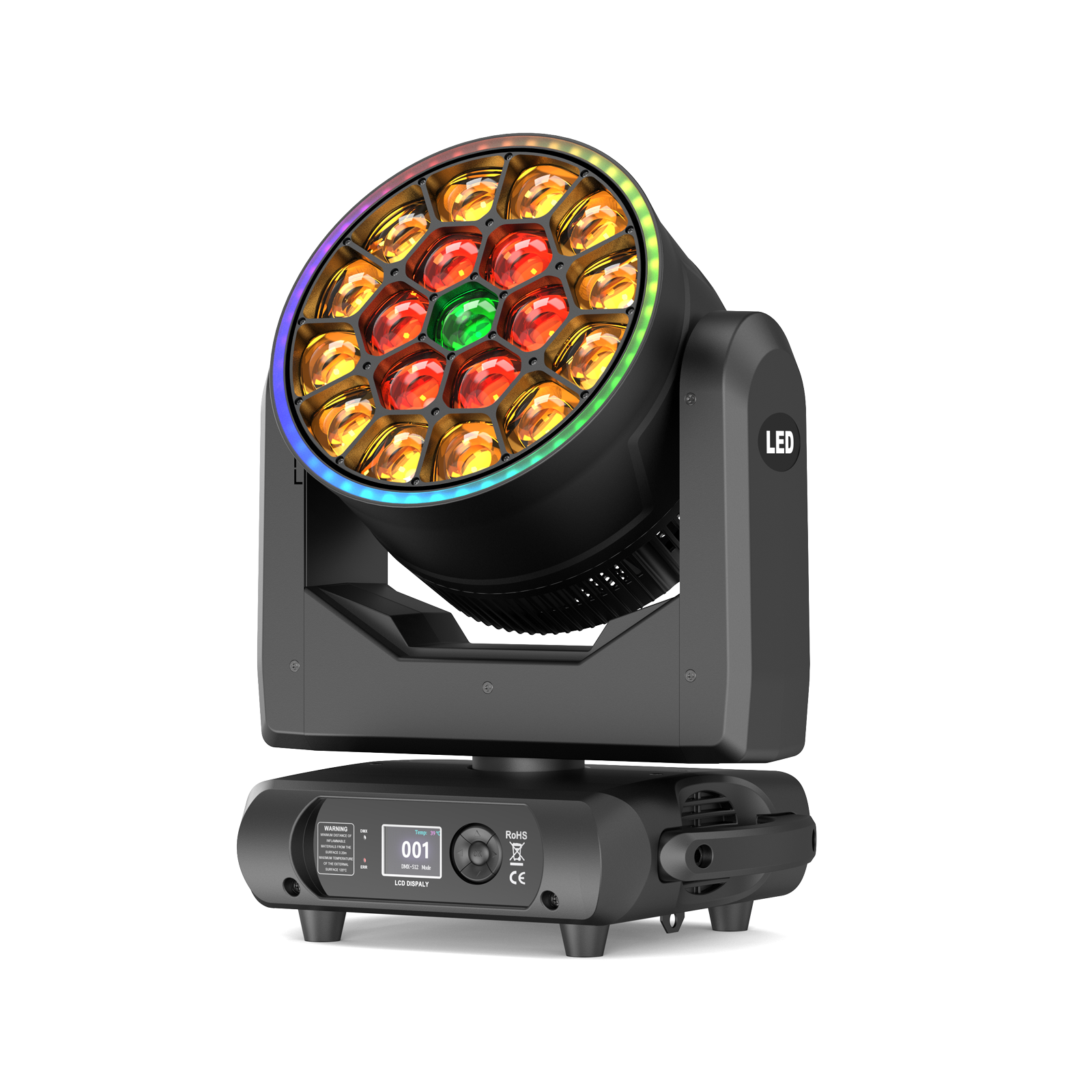

UKING ZQ02110 MOVING HEAD LIGHT

Specification:

Model：ZQ02110

Material：Sheet metal structure/nylon flame-retardant plastic shell

Input voltage: AC110V-240V 50/60Hz

Rated power: 230W

Light source: 19* 15W (RGBW) + 47* 0.5W (RGB) LEDs

Light output angle: 6-60°

Color temperature: 2000K-8000K

CRI index: Ra≥90

Optimal projection distance: 10 meters

Illuminance: 17300Lux@5 meters

Average LED life: 50000h

Dimming curve: 0-100% linear dimming

Strobe: 1-25Hz

Focus: Linear electronic focus

Zoom range: 6-60°

Function effect: CTO, dyeing, beam, vortex, kaleidoscope, single point single control

X axis: 540° Fine-tuning accuracy: 16bit fine-tuning

Y axis: 220° Fine-tuning accuracy: 16-bit fine-tuning

Z axis: 360° infinite rotation

Operation mode: Self-Propelled, Voice Control, Master-Slave, DMX

Control channel: 21CH/26CH/35CH/42CH/78CH/118CH

Protocol: Standard DMX512 protocol, RDM protocol

Data connection: Three-core XLR input/output

Display: 1.7-inch LCD display

Working environment: -20℃-40℃

Package includes：

Power Cord*1

Machine*1

Hook Accessories*2

Instruction Manual*1
