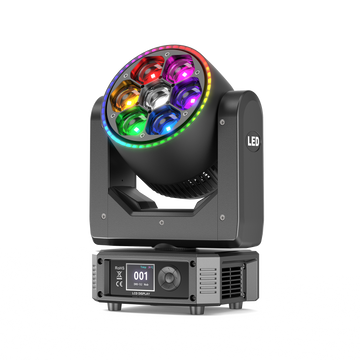

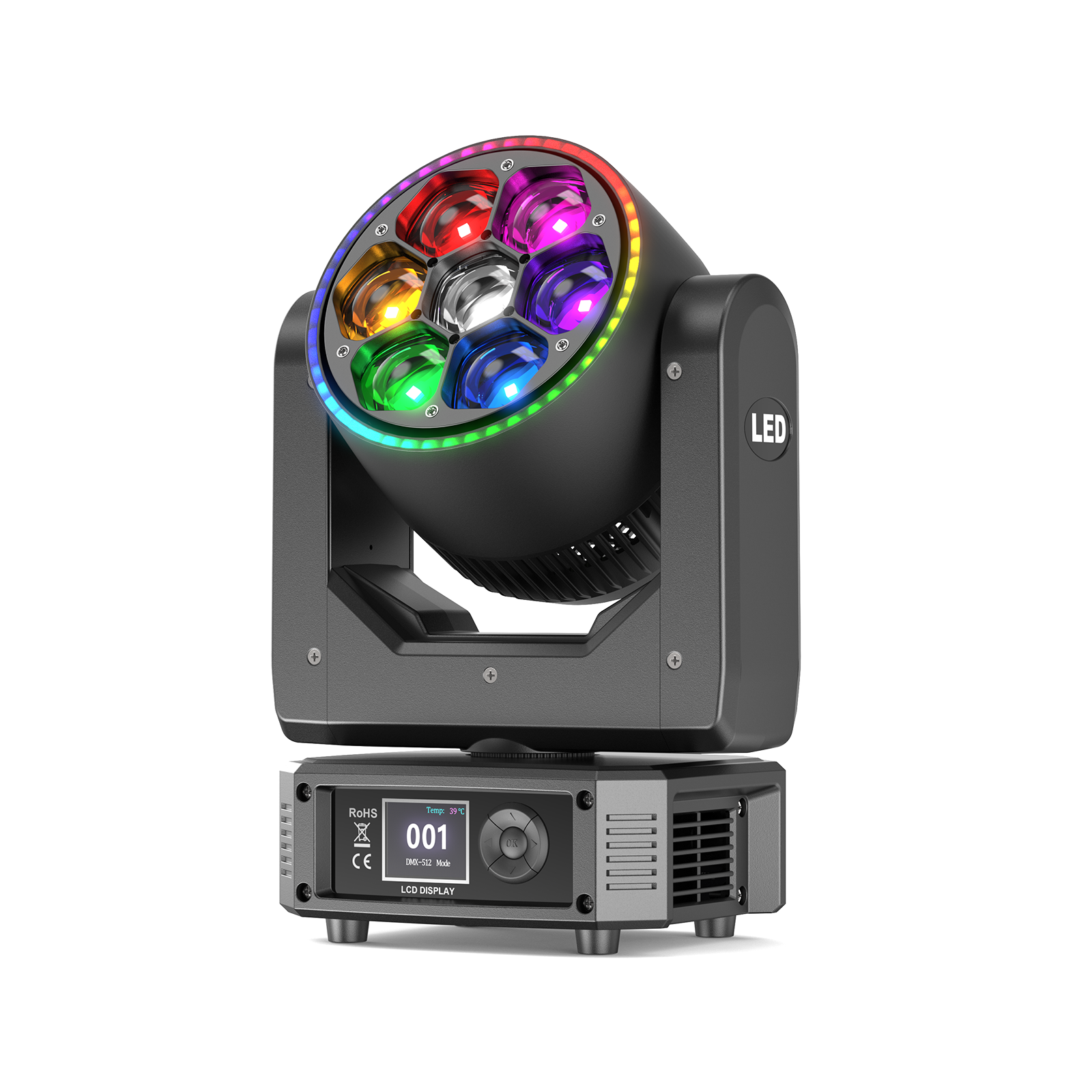

UKING ZQ02109 MOVING HEAD LIGHT

Specifications:

Model: ZQ02109

Material：Aluminum Alloy Structure/Plastic Shell

Input voltage: AC110V-240V 50/60Hz

Rated power: 175W

Light source: 7 *30W (RGBW) + 30* 0.5W (RGB) LEDs

Light output angle: 4.5-45°

Color temperature: 2000K-8000K

CRI index: Ra≥90

Optimal projection distance: 8 meters

Illuminance: 10000Lux@5 meters

Average LED life: 50000h

Dimming curve: 0-100% linear dimming

Flash: 1-25Hz

Focus: linear electronic focus

Zoom range: 4.5-45°

Function effect: 2800K-8000K linear color temperature adjustment, dyeing, beam, vortex, kaleidoscope, single point single control

X axis: 540° Fine-tuning accuracy: 16bit fine-tuning

Y axis: 250° Fine-tuning accuracy: 16-bit fine-tuning

Z axis: 360° infinite rotation

Operation mode: Self-Propelled, Voice Control, Master-Slave, DMX

Control channel: 30CH/42CH/58CH

Protocol: Standard DMX512 protocol, RDM protocol

Data connection: Three-core XLR input/output

Display: 1.7-inch LCD display

Protection level: IP20

Working environment: -20℃-40℃

Package includes:

Power cord*1

Machine*1

Hook accessory*1

Instruction manual*1
